How to position Ticket images

You can configure the images of the PDF ticket from 4 different sections in CPanel:

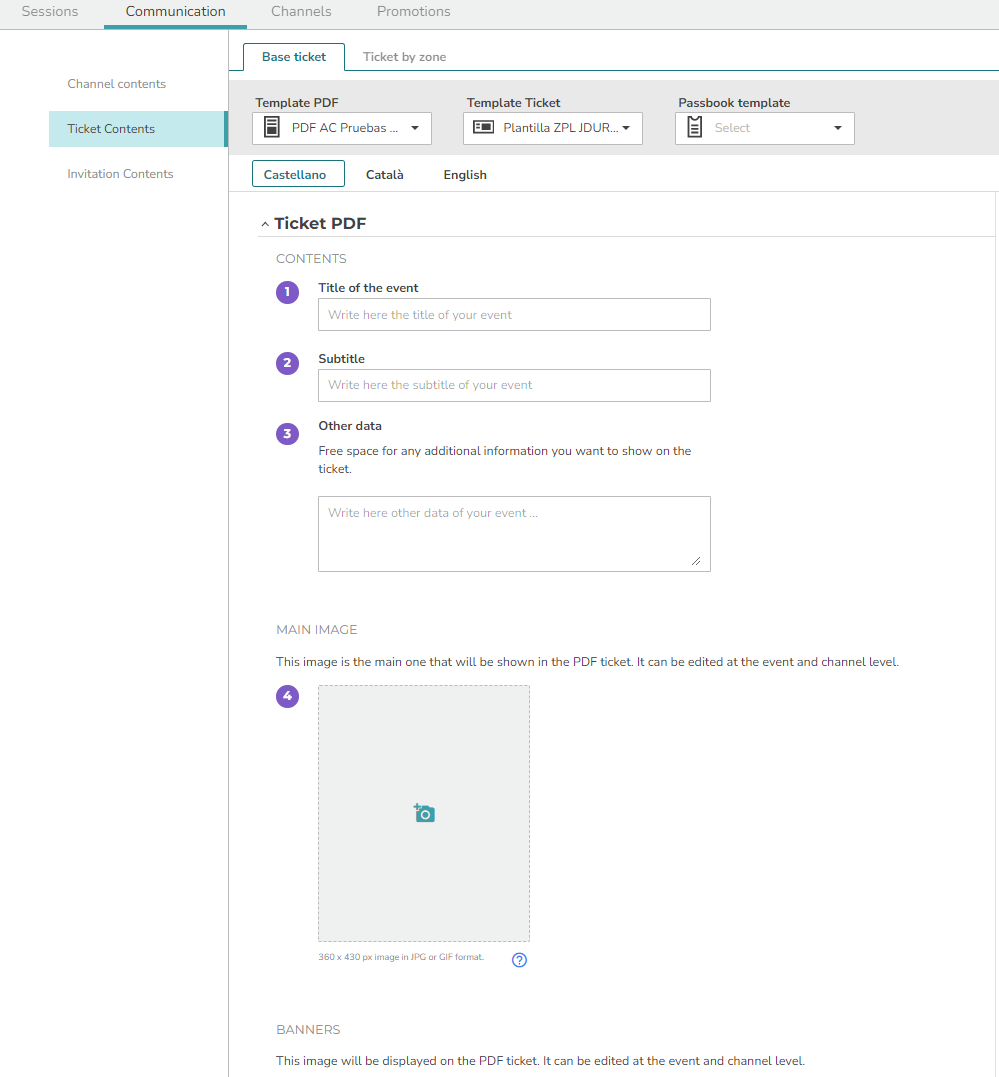

• Event > Communication > Ticket Contents: Main Image, Main Banner. This section is available for the Organiser, not for the Channel.

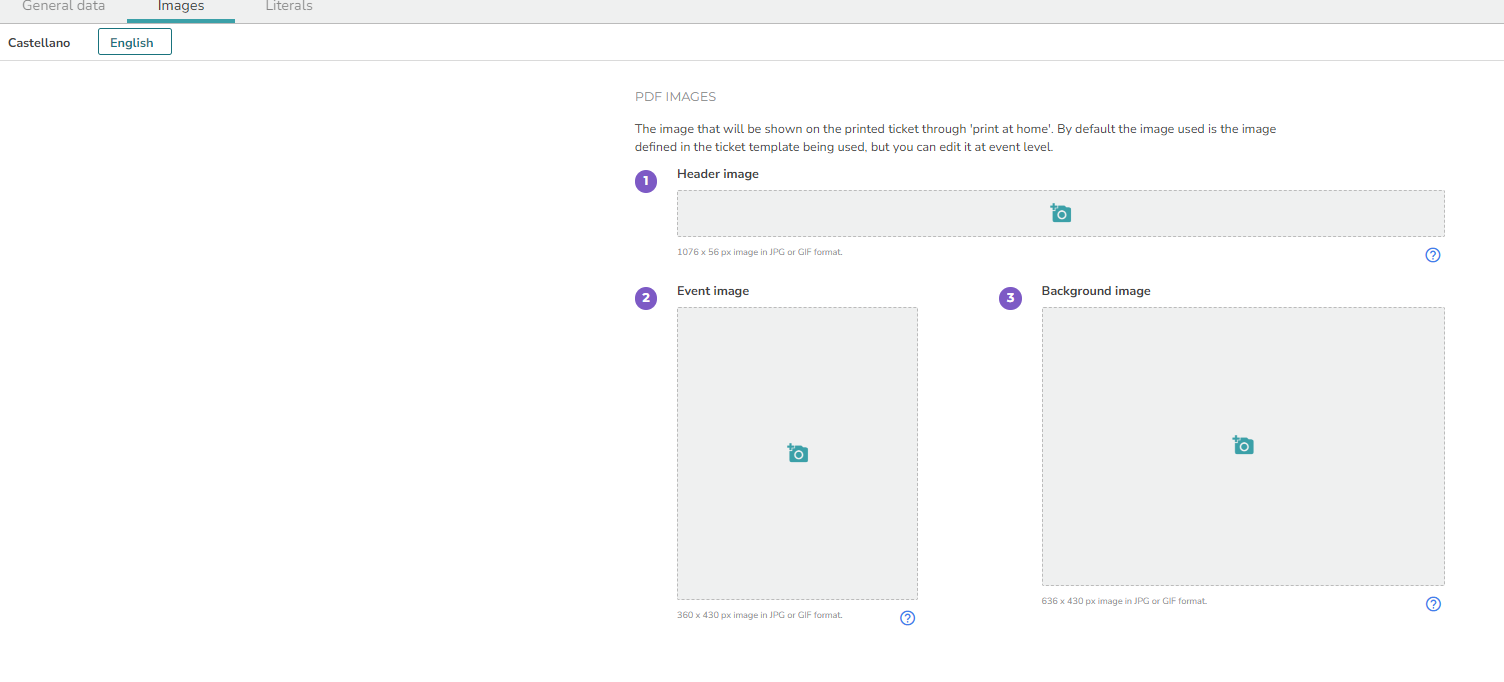

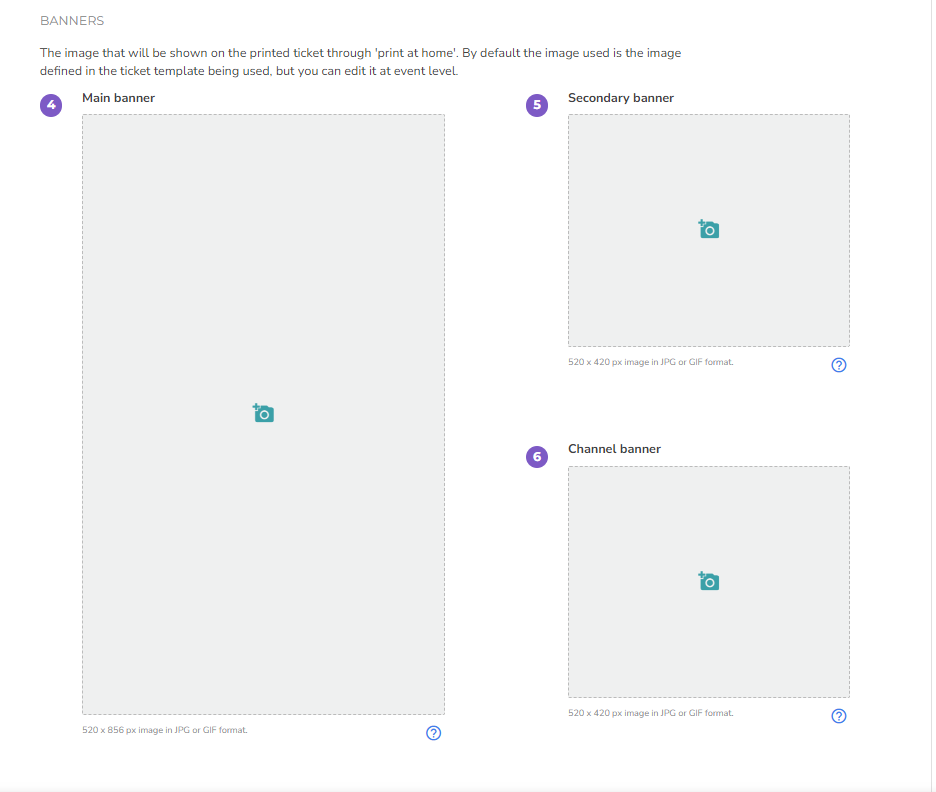

• Events > Ticket templates: Header image, Ticket background image, Event image, Ticket background image and banners. This section is available for the Organiser, not for the Channel.

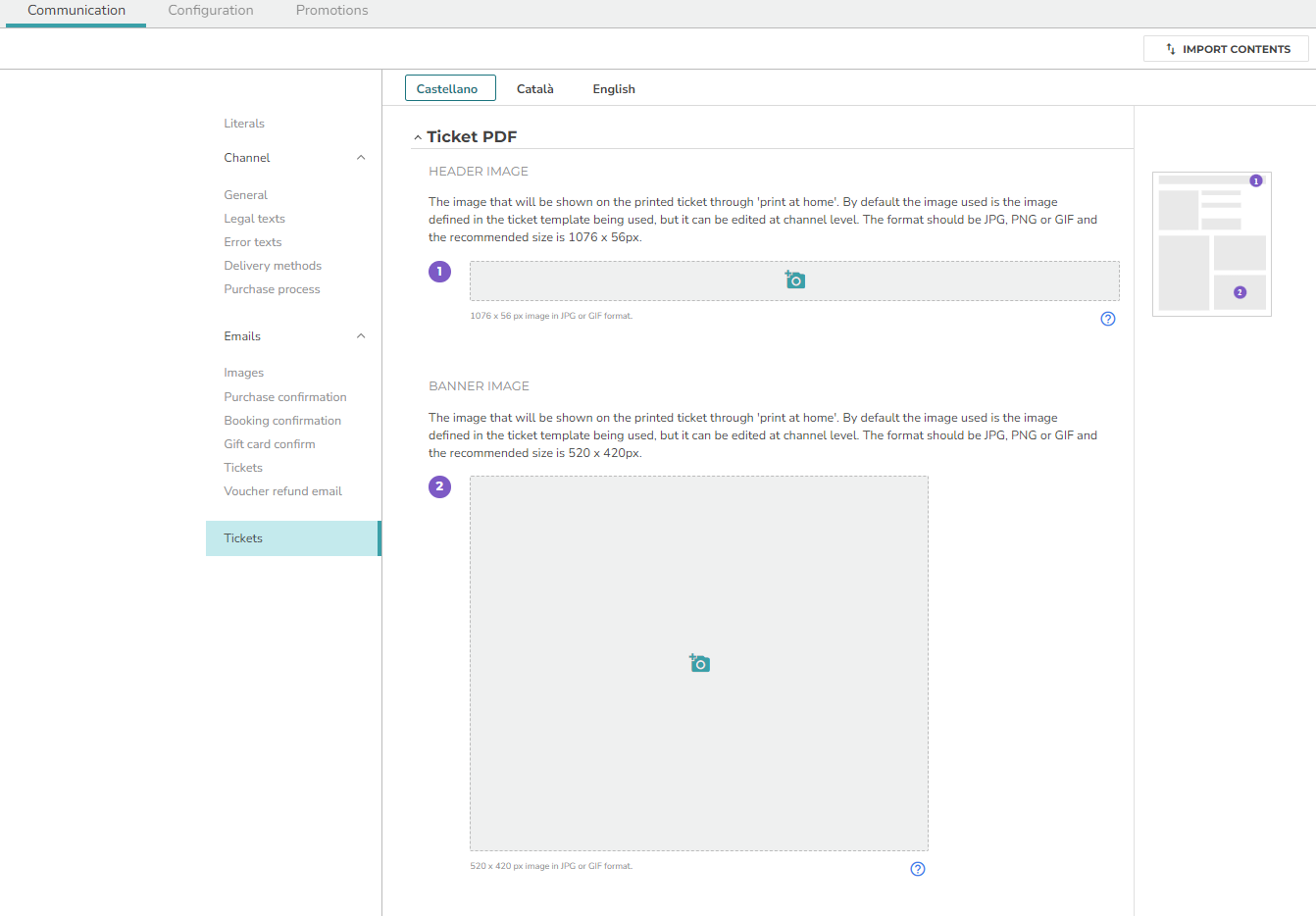

• Sales Channels > My Channels > Communication > Ticket: Header Image and Banner Image.

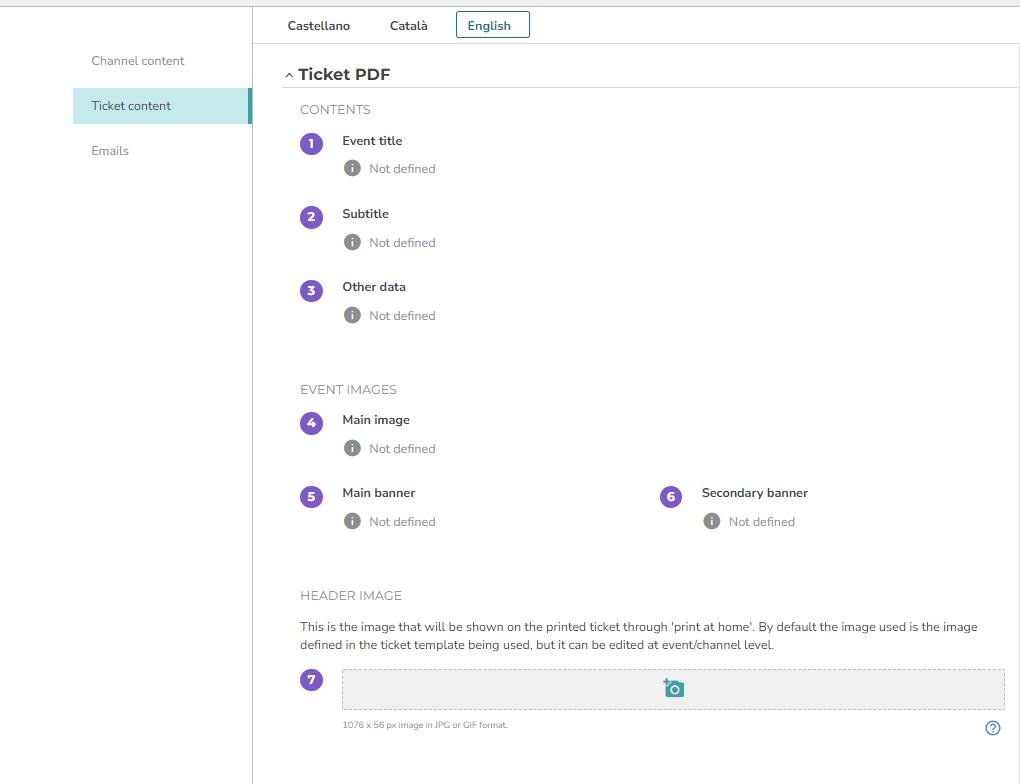

• Channels > Sales Requests > Communication > Ticket Content: Event Images and Header Image.

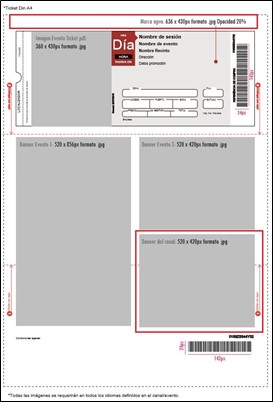

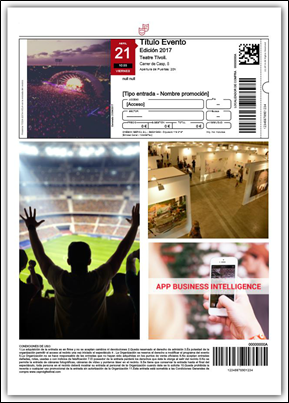

Example of template:

Size of images

Events

Main image: 360 x 430 px.

Main banner: 520 x 856 px.

Secondary banner: 520 x 420 px.

Main image of the ticket printer: 624 x 696 px.

Banner: 456 x 112 px.

Channels

Header image: 1076 x 56 px.

Banner Image: 520 x 420 px.

Passbook channel 350x60px

Header banner: 670 x 56 px.

Channel Banner 300x242

Ticket templates

Header image: 1076 x 56 px.

Ticket background image: 636 x 430 px.

Event image: 360 x 430 px.

Main banner: 520 x 856 px.

Secondary Banner: 520 x 420 px.

Channel Banner: 520 x 420 px.

Sales requests

Main image: 360 x 430 px.

Main banner: 520 x 856 px.

Secondary banner: 520 x 420 px.

Ticket printer main image: 624 x 696 px.

Banner: 456 x 112 px.

To upload the image for each section, it is necessary to attach each one by clicking on the Change image button.

Hierarchy of image

The hierarchy in the order of the images on the ticket is as follows:

1. Event
2. Channels
3. Sales requests
4. Ticket Templates
